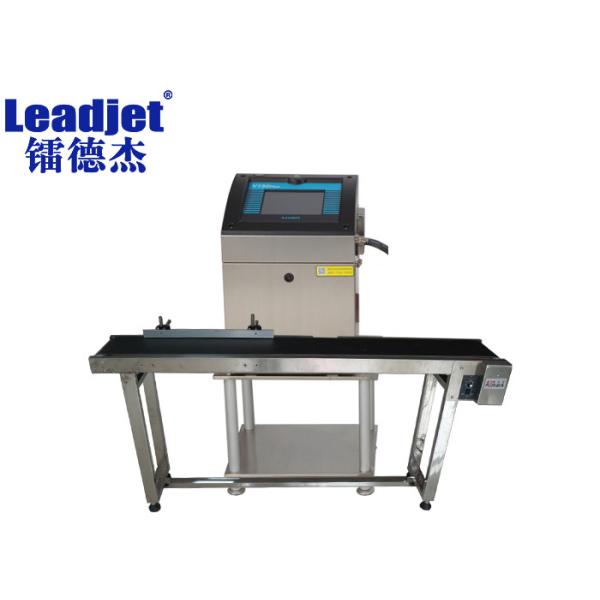

Leadjet V150PLUS High Speed 280m/min 1-3 Lines Information 1.5-20mm Font Height CIJ Inkjet Printer
Printing on the package is very simple. Using a small character printer, you can achieve high-speed online coding, complete variable data printing, including barcodes, QR codes and other content types.
Under the action of the pressure pump, the ink enters the spray gun. The spray gun is equipped with a crystal oscillator. After the ink is sprayed, a fixed interval is formed after the ink is ejected. Through the processing and phase of the CPU, some ink dots pass through the charging pole. They are charged with different electric cores, and different offsets occur under a high-voltage magnetic field of several thousand volts. The flying nozzles fall on the surface of the moving product to form a dot matrix, thereby forming characters, numbers, figures or two-dimensional codes.
It has the characteristics of high definition, fast drying speed, good adhesion, long time and no fading. It is the preferred equipment for all kinds of food, beverage, daily chemical and pesticide agricultural products packaging bags. Leadjet can also provide plastic for customers. The bag sorting machine can realize high-speed online coding, such as duck eggs and egg bags.
Speicfication
| CIJ Inkjet Printer | V150PLUS |
| Max Print Speed | 280m/min (5*7 dots) |
| Printable Font Height | 1.5 mm~20mm. Maximum can be widened 9 times |
| Dot Matrix | 24 * 24 dot matrix |
| Memory Capacity | Up to 1000 messages |
| Printing Line | Within 3 Lines |
| Printer Content | Time, Date, Lot No, Serial No. etc. |
| Operate Interface | Chinese,English,Korean and others with graphic editing function |
| Print Material | Metal, plastic, glass, wood, tube, electrical wire, cable etc. |
| Print Distance | Max: 30mm,from printhead bottom to substrate surface |
| Ink Color | Black, blue, red etc |
| Ink Consumption | 70 millions character per litre |
| | |
| Printhead Throat Length | 3m (Customizable) |
| USB and RS232 Port | With USB port, but no RS232 port |
| Environment Temperature | 5℃-45℃ |
| Humidity | Below 90% |
| Machine Dimension | 387 * 270 * 507mm |
| Package in wooden dimension | 625 * 455 * 730mm |
| NW,/GW. | 30kgs / 40kgs |
| Display and Keyboard | 8-inch full-color high-definition touch screen,and full-touch virtual keyboard |
Feature
1. Quick-dry ink used industrial non-contact small character inkjet printers
2. Improved stability, easier maintenance
3. Intelligent ink system
4. Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
5. User friendly interface and most reliable ink system
FAQ
Q: Are you a factory or a trading company?
A: Factory. Founded in 1997, now in Wuhan CN. Authorized to engage in import-export business. Welcome to visit our factory!
Q: I’m wondering if your machine can print on my product.
A: Please show me your product and characters by email or express, then we will film the process of printing and then send you the video and printing samples. All the freight cost shall be borne by the buyer.
Q: I have never operated inkjet printer before, is it hard?
A:We will provide English Service Manual and Unpacking together with the printer. It is easy to use.
